Minimum Oeder Quantity | 1 | Payment Terms | TT |
---|---|---|---|
Supply Aility | 10000 | ||
High Light | cnc drilling machine,tube sheet drill machine,tube plate drilling machine |

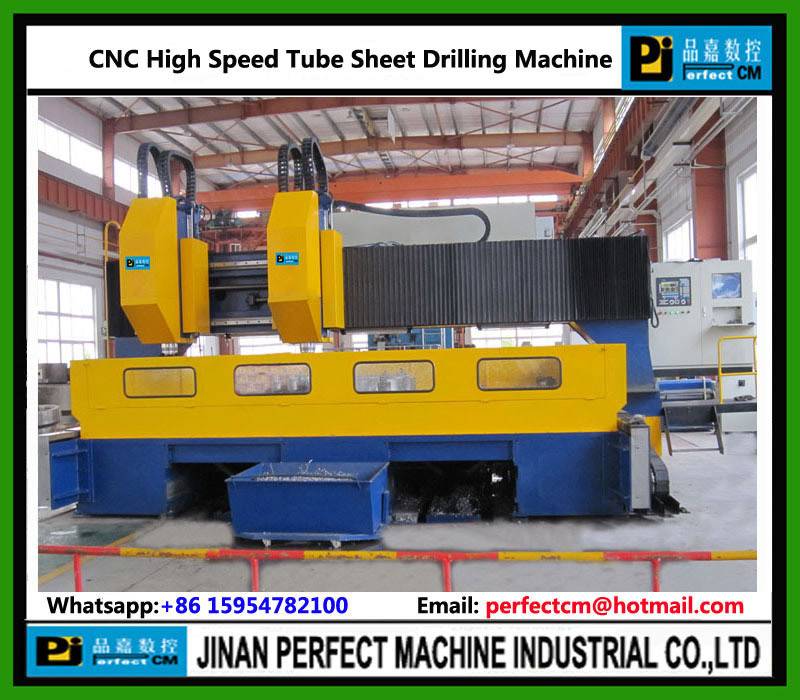

High Speed CNC Tube Sheet Drilling Machine
Applicable Industry:
Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. And large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.
Technical data, please check the following form:
Name of parameter | Item | Value |
Max. distance between hole centers | Length Width | 50005X000mm |
Max. thickness of workpiece | 250mm | |
Worktable | Width of T-slot | 28mm |
Vertical ram type drilling head | Quantity | 2 |
Morse Taper | BT50 | |
Max .drilling diameter. (Normal carbon steel) | 40mm(Carbide drill head) | |
50mm(High-speed steel twist drilling head | ||
Drill depth/drill diameter | 5(Carbide drill head) | |
Rotation speed of spindle(stepless frequency conversion) | 30_2400r/min |
Should Your Excellency need more information about us, please send us your inquiry.
Skype: susancql
Mobile: 0086-15954782100
GTalk: jnfastcnc
E-mail: chengsusan2004 at hotmail.com
Thanks and Best Regards,
Ms. Susan
