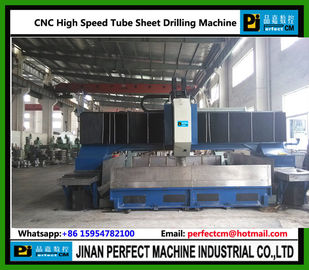

High Speed CNC Drilling Machine for Big Plate&Tube Sheet (Model PHD2020-1/PHD3030-1)

  • High Speed CNC Drilling Machine for Big Plate&Tube Sheet (Model PHD2020-1/PHD3030-1)
Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number PHD2020-1/PHD3030-1
Price USD
Packaging Details STANDARD
Delivery Time 10
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
High Light

cnc drilling machine

,

tube sheet drill machine

,

tube plate drilling machine
Leave a Message
Product Description

High Speed CNC Tube Sheet Drilling Machine



Applicable Industry:

Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. And large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.


Technical Specifications:



Model

Item

PHD2020-1

PHD3020-1

PHD3030-1

Maximum Size Of Workpiece

LXW (mm)

2000X2000

3000x2000

3000x3000

Max.Thickness Of Workpiece



250mm

NO.Of Champs

No.s

12

Worktable

T-Slot width/Space

22/500 mm

Vertical Sliding Drilling Head

Quantity

1 No.

Spindle Taper

BT50

Max.Drilling Diameter

(Plain Carbon Steel)

φ40mm(Carbide Drill)

φ50mm

(High-Speed Steeltwist Drill)

Main Spindle Rotation Speed

30-2800r/Min

Spindle Motor Power

22kw

The Distance From Bottom Spindle To Worktable

250-400mm

Longitudinal Movement Of Gantry(X Axis)

Max. Stroke

2000mm

3000mm

3000mm

X Axis Movement Speed

0-8m/Min

X Axis Servo Motor Power/Torque

2X3kw/28.4Nm

Lateral Movement Of Power Head(Y Axis)

Max. Stroke

2000mm

2000mm

3000mm

Y Axis Movement Speed

0-8m/Min

Y Axis Servo Motor Power/Torque

3kw/28.4Nm

Vertical Sliding Feeding Movement

(Z Axis)

Z Axis Stroke

500mm

Z Axis Feeding Speed

0-5m/Min

Z Axis Servo Motor Power/Torque

3kw/28.4Nm

Positioning Accuracy

X,Y Axis

≤0.1mm / Full length

Repeat Positioning Accuracy

X,Y Axis

≤0.05mm / Full length
