High Speed CNC Drilling Machine for Tube Sheet (Model PHD4040-2/PHD5050-2/PHD6060-2)
Product Details
| Minimum Oeder Quantity | 1 | Payment Terms | TT, L/C At Sight |
|---|---|---|---|
| Supply Aility | 100 |
Product Description

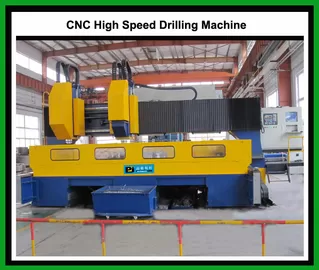

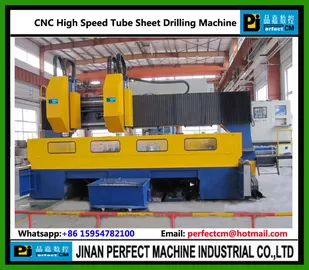

High Speed CNC Drilling Machine for Tube Sheet (Model PHD4040-2/PHD5050-2/PHD6060-2)
Applicable Industry:
Mainly used for drilling tube plate, clapboard, flange and large plate in petrochemical, boiler, wind power, flange industries and also for connection plates in building, bridge, heat exchange, iron tower industries.
Product Basic Parameter:
|
Model |
Item |
PHD4040-2 |
PHD5050-2 |
PHD6060-2 |
||
|
Maximum Size Of Workpiece |
LXW (mm) |
4000X4000 |
5000x5000 |
6000x6000 |
||
|
Max.Thickness Of Workpiece |
|
250mm |
||||
|
NO.Of Champs |
No.s |
12 |
||||
|
Worktable |
T-Slot width/Space |
28/500 mm |
||||
|
Vertical Sliding Drilling Head |
Quantity |
2 No.S |
||||
|
Spindle Taper |
BT50 |
|||||
|
Max.Drilling Diameter (Plain Carbon Steel) |
φ40mm(Carbide Drill) |
|||||
|
φ50mm (High-Speed Steeltwist Drill) |
||||||
|
Main Spindle Rotation Speed |
30-2800r/Min |
|||||
|
Spindle Motor Power |
2x22kw |
|||||
|
The Distance From Bottom Spindle To Worktable |
300-800mm |
|||||
|
Longitudinal Movement Of Gantry(X Axis) |
Max. Stroke |
4000mm |
5000mm |
6000mm |
||
|
X Axis Movement Speed |
0-8m/Min |
|||||
|
X Axis Servo Motor Power/Torque |
2X3kw/28.4Nm |
|||||
|
Lateral Movement Of Power Head(Y Axis) |
Max. Stroke |
4000mm |
5000mm |
6000mm |
||
|
Y Axis Movement Speed |
0-8m/Min |
|||||
|
Y Axis Servo Motor Power/Torque |
3kw/28.4Nm |
|||||
|
Vertical Sliding Feeding Movement (Z Axis) |
Z Axis Stroke |
500mm |
||||
|
Z Axis Feeding Speed |
0-5m/Min |
|||||
|
Z Axis Servo Motor Power/Torque |
2x3kw/28.4Nm |
|||||
|
Positioning Accuracy |
X,Y Axis |
≤0.1mm / Full length |
||||
|
Repeat Positioning Accuracy |
X,Y Axis |
≤0.05mm / Full length |
||||
|
Hydraulic System |
Hydraulic Pump Pressure / Flow |
6.5Mpa /25L/Min |
||||
|
Hydraulic Pump Motor Power |
2.2kw |
|||||
|
Pneumatic System |
Compressed Air Supply Pressure |
0.5Mpa |
||||
|
Chip Removal And Cooling |
Chip Removal Type |
Plate Chain Type |
||||
|
Quantity |
2 No.s |
|||||
|
Chip Removal Speed |
1m/min |
|||||
|
Chip Removal Motor Power |
2x0.75kw |
|||||
|
Internal Cooling Water Pump Motor |
2x3kw |
|||||
|
External Cooling pump Motor power |
2x0.75kw |
|||||
|
Automatic Lubrication System |
Lubrication Pressure |
2Mpa |
||||
|
Lubrication Point Fuel Injection |
0.1ml |
|||||
|
Lubrication Cycle |
6-10min |
|||||
|
Electrical System |
CNC System |
FAGOR8055 |
||||
|
CNC Axis |
6 |
|||||
|
Overall Dimensions Of Machine |
LXWXH |
About 7800X6100X3600mm |
About 8800X7100X3600mm |
About 9900X8100X3600mm |
||
|
Weight of Machine |
|
About 50t |
About 60t |
About 70t |
||
