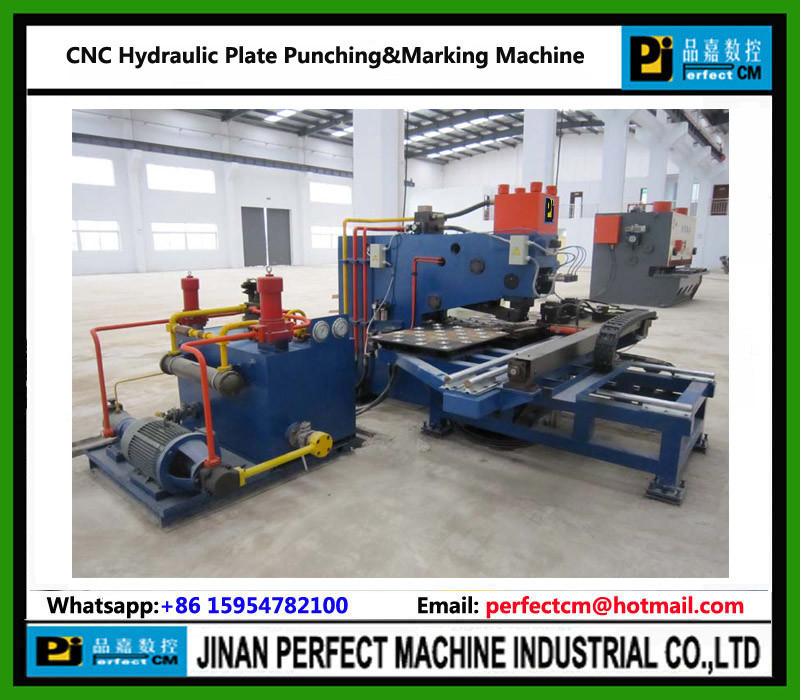

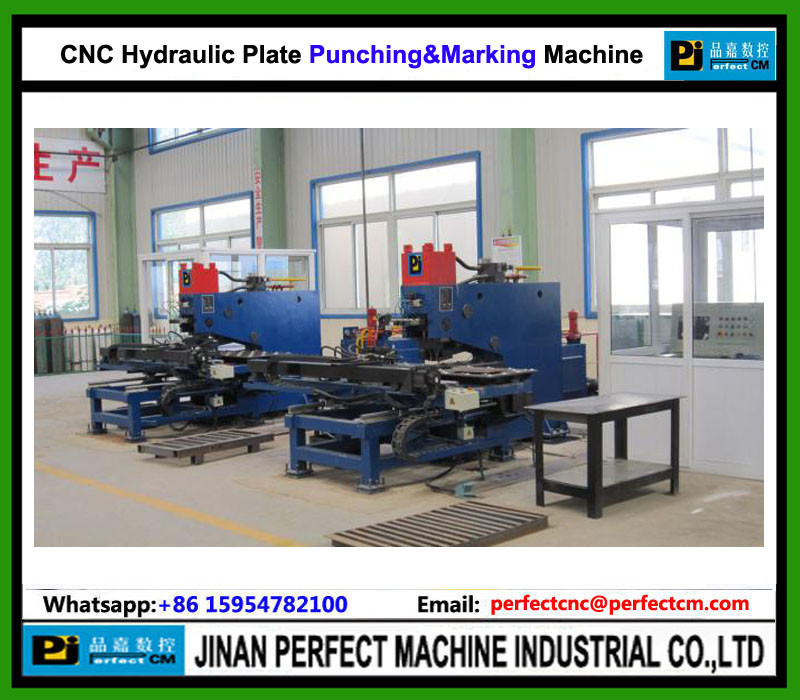

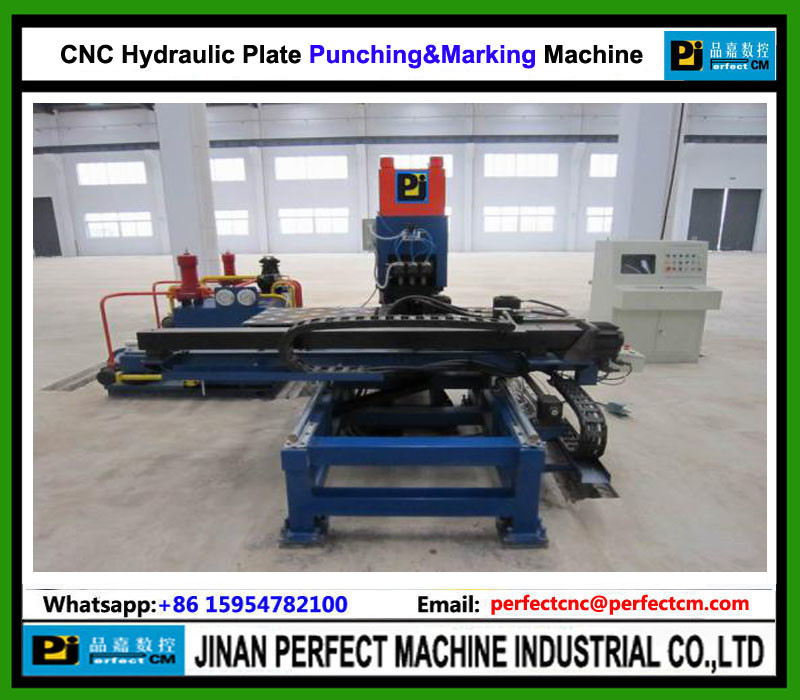

CNC Hydraulic Plate Punching & Marking Machine
Special CNC machine for punching and marking of steel plates in the field of steel tower industry and steel structure. It is also used to punch and mark of steel plates of other industries.
The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different work piece, with zero baffles as datum mark, and work piece supported by rolling-ball working table. Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of work piece to computer for repeated calling program in the future.
- Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
- Important functional components adopt modular assembly, easy to repair it.
- Can do punching & marking on the one plate.
- Easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.
- With function of failures self-diagnosis.
- Lighten the working strength of workers.
Power: Three phase four wire systems
AC Voltage: 380 V (Can design according to customers’ required Voltage)
Fluctuation of voltage: ±5%
Local working temperature: 0—40℃
|Max Size Of Work Piece L×W(Mm)||1500×800||1500×1000|
|Max. Diameter Of Punching (Mm)||Φ26||Φ26|
|Plate Thickness Of Punching (Mm)||6-25 (Q 235)||6-25 (Q 235)|
|Punching Force (KN)||1000||1000|
|Marking Force (KN)||800||800|
|Min. Distance Between Hole And Plate Edge (Mm)||25||25|
|Dimensions Of Characters (Mm)||14×10×19||14×10×19|
|Quantity Of Character||12||12|
|Precision||Accordance With GB2694||Accordance With GB2694|
|Programming Mode||Input By Keyboard, RS232 Interface, Floppy Disk And USB Interface||Input By Keyboard, RS232 Interface, Floppy Disk And USB Interface|
