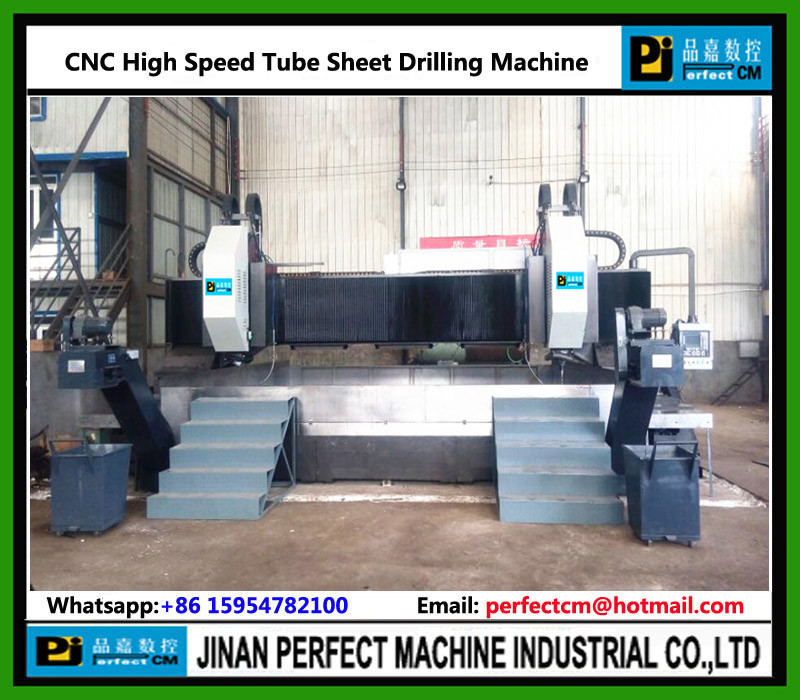

Multi Spindles CNC Drilling Machine for Tube Sheet (Model PHD3030-2)

  • Multi Spindles CNC Drilling Machine for Tube Sheet (Model PHD3030-2)
Place of Origin China
Brand Name PERFECT
Certification ISO9001-2008
Model Number PHD3030
Minimum Order Quantity 1
Price USD
Packaging Details STANDARD
Delivery Time 90 days
Supply Ability 1000
Product Details
Minimum Oeder Quantity 1 Payment Terms TT
Supply Aility 10000
Leave a Message
Product Description

Multi Spindles CNC Drilling Machine for Tube Sheet (Model PHD3030-2)



Applicable Industry:

Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. And large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.


Technical Specifications:

Name of parameter Item Value
Max. distance between hole centers Length Width 3000x3000mm
Max. thickness of workpiece   250mm
Worktable Width of T-slot 28mm
Vertical ram type drilling head Quantity 2 or More
Morse Taper BT50
Max .drilling diameter. (Normal carbon steel) 40mm(Carbide drill head)
50mm(High-speed steel twist drilling head
Drill depth/drill diameter 5(Carbide drill head)
Rotation speed of spindle(stepless frequency conversion)

30-2400r/min

We welcome customers to visit our factory at any time. No wait, please order now!

Should Your Excellency need more information about us, please send us your inquiry.

Skype: susancql
Mobile: 0086-15954782100 (What'sapp)

Thanks and Best Regards,

JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
