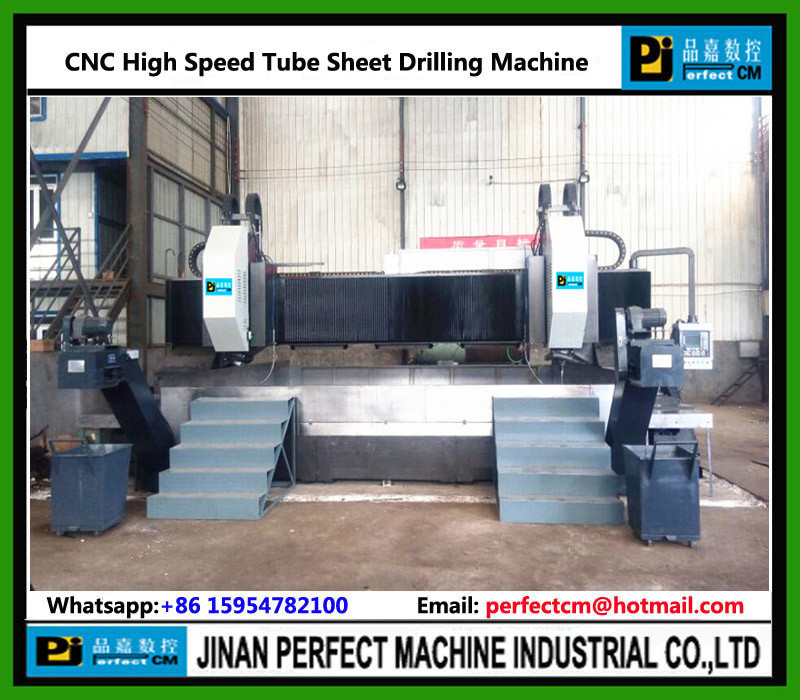

CNC High Speed Tube Sheet Drilling Machine (Model PHD4040-2)
|Minimum Oeder Quantity||1||Payment Terms||TT|
CNC High Speed Tube Sheet Drilling Machine
Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. And large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.
|Name of parameter||Item||Value|
|Max. distance between hole centers||Length Width||4000X4000mm|
|Max. thickness of workpiece||250mm|
|Worktable||Width of T-slot||28mm|
|Vertical ram type drilling head||Quantity||2|
|Max .drilling diameter. (Normal carbon steel)||40mm(Carbide drill head)|
|50-80mm(High-speed steel twist drilling head|
|Drill depth/drill diameter||5(Carbide drill head)|
|Rotation speed of spindle(stepless frequency conversion)||30_2500r/min|
